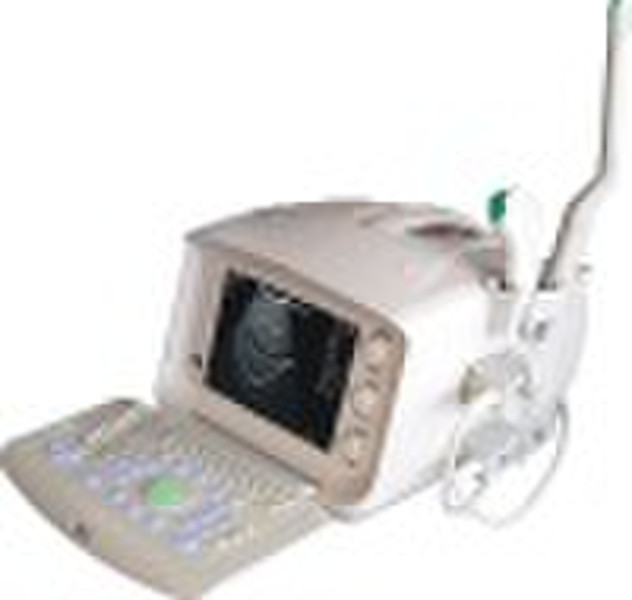

portable ultrasound scanner(CE Approved)

Protable Ultrasound scanner Theprotable ultrasound scanner, controlled by computer and equipped with digital screening converter(DSC),is characterized by its clear image,stable performance and high resolution with adopting variable aperture,multi-segment dynamic focus,large dynamic band low-noise pre-amplifier, logarrthmic compression, TGC control, dynamic filter, edge enhancement and frame-related technologies etc. Technical specification • main probe: 3.5MHZ(R=80) electronic multi-frequency convex array(2.5MHZ 5.0MHZ) • Max Display Depth: 240mm • Display format: B,B+B,4B,B+M,M+M • Grey scale:256 levels • Image Magnification: ×0.8 ×1.0,×1.2,×1.5,×2.0 • Measuring:distance, perimeter, area, volume, pregnant weeks (BPD,GS,CRL,FL,AC,HC)etc. heart rate and slope can be measured under M mode • Character Annotation: date, series No. of patient history, age, sex, focus combination, frame coefficient, full screen character editing • Movie replay: 256 frames • Body Position Annotation: ≥33 Types • 8 stage TGC adjustment • Power supply: 110V or 220V • Weight: 13.5kgs
