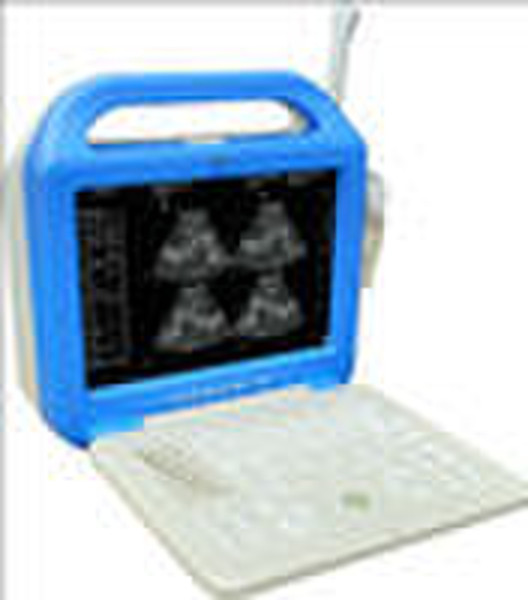

Laptop Ultrasound Scanner(CE Approved)

Specification for XuKang Ultrasound Scanner Structure Portable (Model:xk21355) Scanning Mode Electronic Convex Array Optional Probes 1. 3.5Mhz convex array probe( 80 elements) 2.6.5Mhz Vaginal probe(80 elements) 3.7.5Mhz high-frequency linear array probe Technical Parameters: 1. Five display format: B,B+B,4B,B+M,M; Image grey scale: 256 levels 2. Freezing, real time, selective enlargement, upwards/downwards and left/right turnover of the image can be realized3. 8 stage TGC adjustment; 18 types of body mark ;Software reset function4. Full-screen character annotation; .Fixed character, real time clock and calendar5. Electron focusing, free combination of focus6. Various probe for choice, enough to meet requirement of clinical diagnosis7. Frequency Conversion: 2.5MHz ,3.5MHz ,4.5MHz ,5.0MHz, 5.5MHz, 6.5MHz, 7.5MHz, 8.5MHz10.0MHz8. Image magnification: ×1.0,×1.2,×1.5,×2.0.9. Measuring: distance, perimeter, area, volume, pregnant weeks (BPD,GS,CRL,FL,AC,HC)etc. heart rate and slope can be measured under M mode10. Permanent function of image store: 8 images11. Built-in DSTN Processor, PAL-D and VGA video transmission, external screen monitor, colorful screen, video tape recorder, video image printer ,laser printer etc.12. USB Function of image store: more than thousands of images13. Printer function : can connect laser printer directly14. Parts enlargement function: under the mode of real time and freeze can realize the parts enlargement15. Movie replay function, uninterrupted replay or step forward/backward replay for 256 images can be realized.16.Having the function of “flash in ““flash out”“dream in ” “dream out”and “USB”17.With the optional function of 4 segments frame correlation18. Soft Push Keyboard and track ball or mouth are adopted, shortcut , convenient and flexible. Scope of Application: The equipment is targeting hospital and clinic to diagnose human liver, gallbladder, spleen, kidney, pancreas, heart, bladder, womb, adnexa and urinary system and it can also be applied to check intrauterine equipment, pregnancy and eugenism etc.
